SVS SoundPath Speaker Level Subwoofer Adapter
SVS SoundPath Speaker Level Subwoofer Adapter
Inspired Engineering for Uncompromised Performance

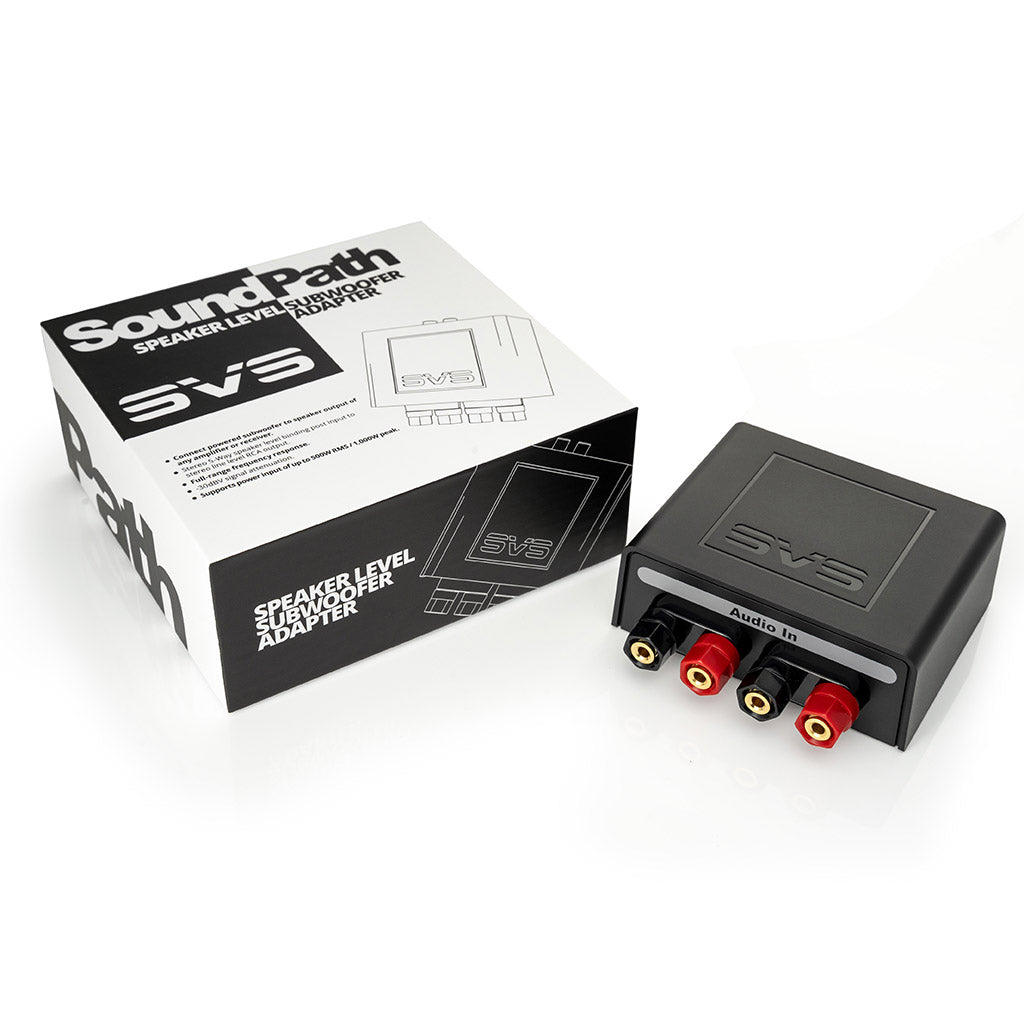

- Stereo Gold-plated 5-way speaker-level binding posts allow bare-wire, spade, or banana connectors.

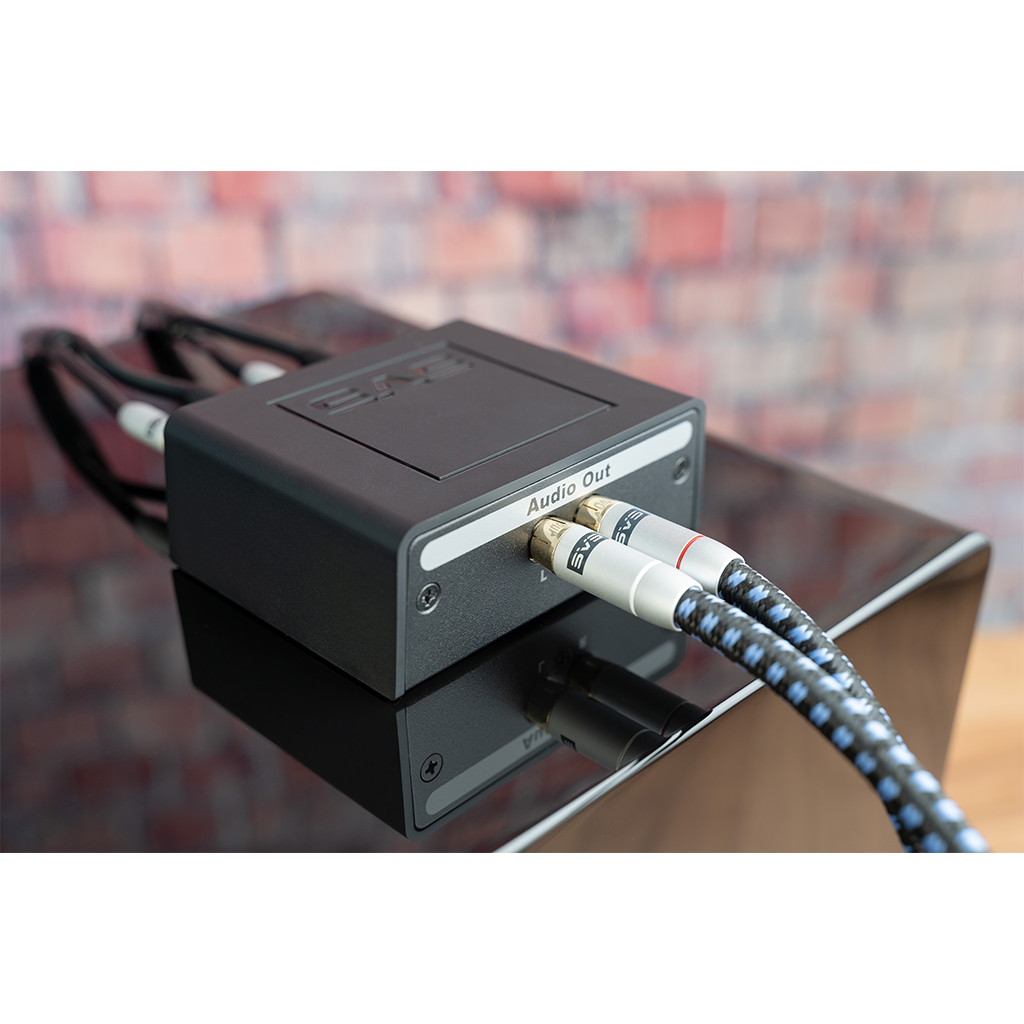

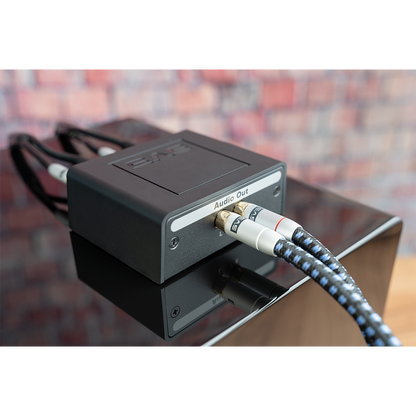

- Gold-plated stereo RCA line-level output jacks ensure a secure connection to the line-level inputs of the powered subwoofer. Works seamlessly with a pair of SVS SoundPath RCA Subwoofer Cables.
- Features premium grade narrow-tolerance resistors and wide-trace PCBs for high-current and extreme power handling. Uncompromising design yields wide bandwidth and ultra-low distortion for pristine signal transfer, pinpoint accuracy and compatibility with all high-end audio systems.
- -30 dBV attenuation will not draw any power from the loudspeaker amplifier ensuring a safe signal for the subwoofer line level inputs.
- Minimalist design with insulated chassis for discrete placement.
Note: If you have a differential amplifier, please contact SVS Customer Service for guidance on special connection methods to safely use the SoundPath Speaker Level to Subwoofer Adapter.

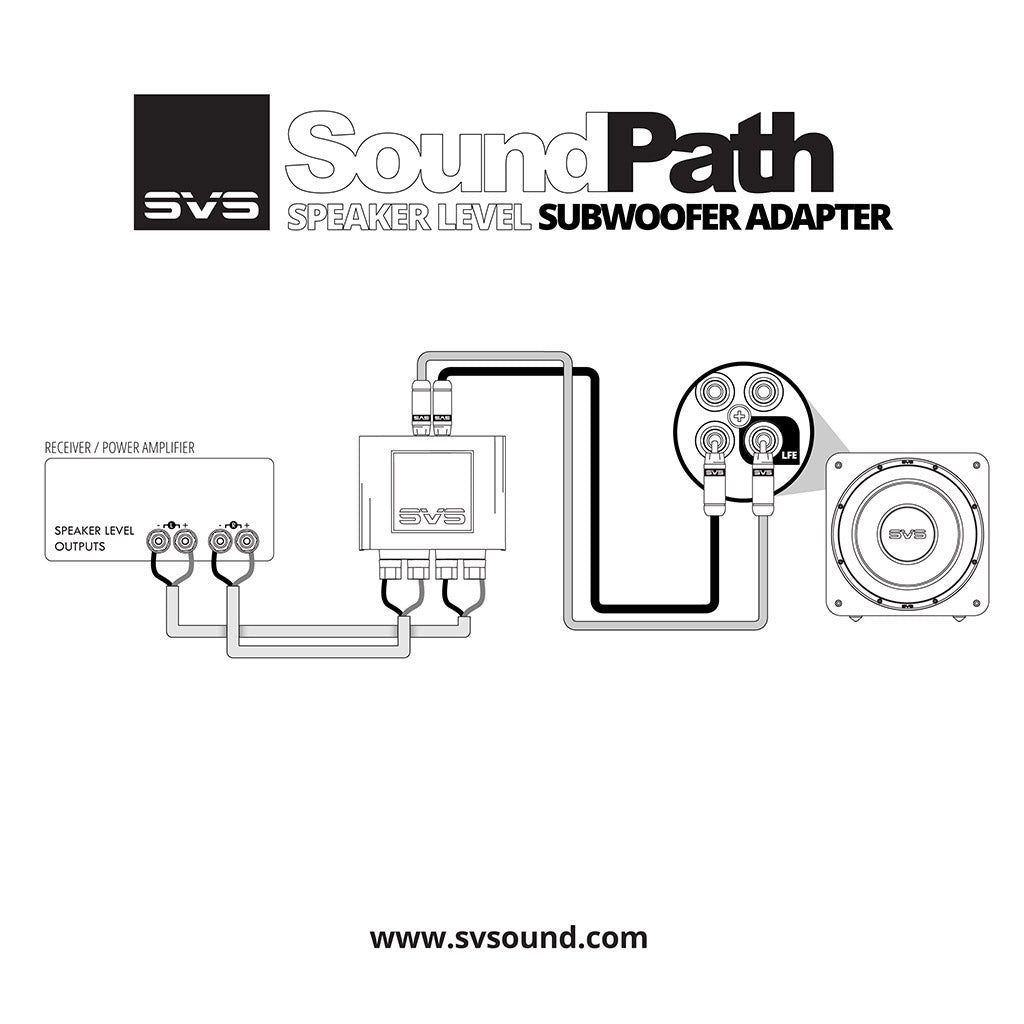

Easy Speaker Level to Line Level Connection

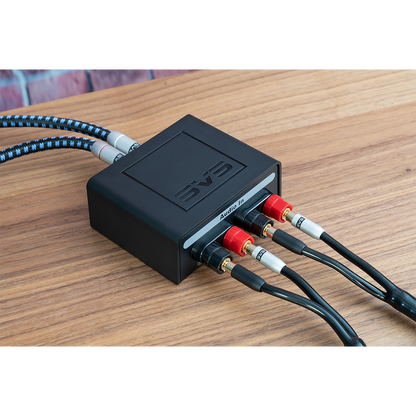

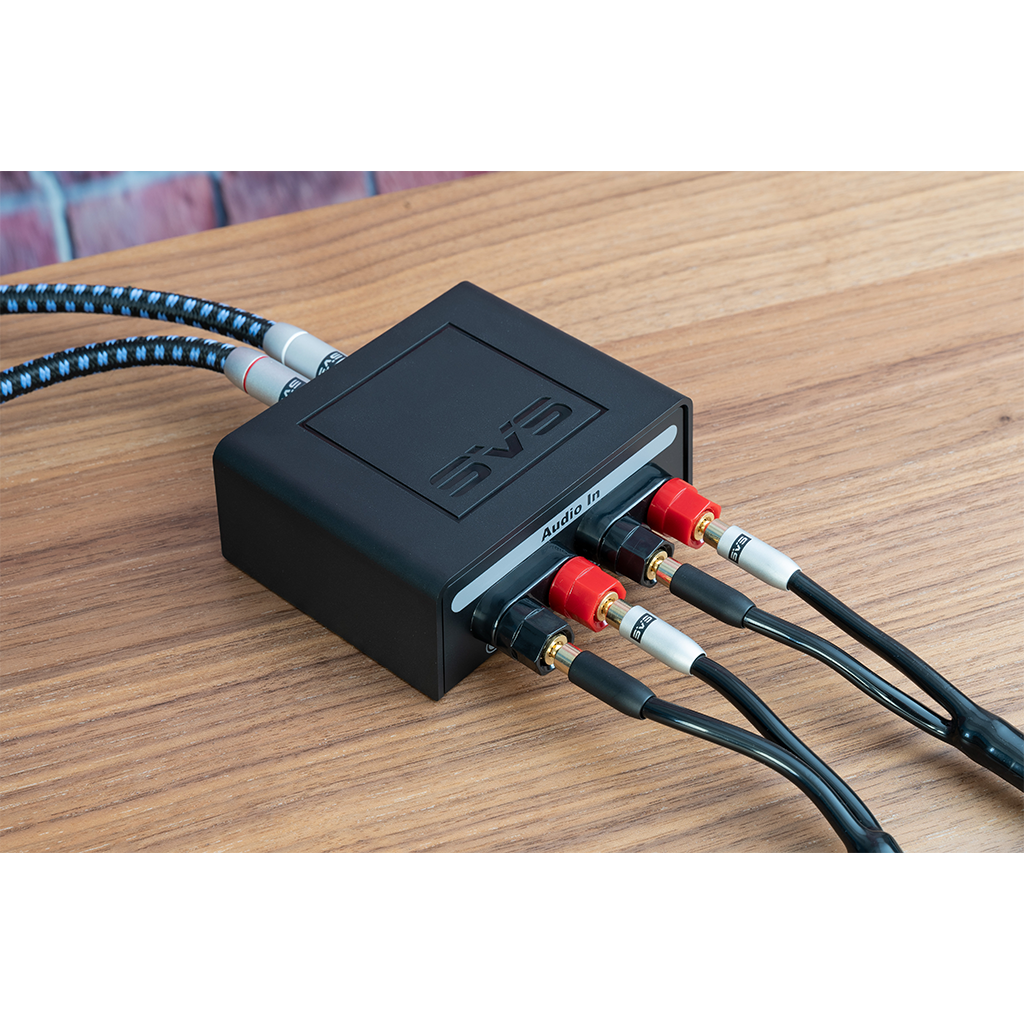

SVS SoundPath Bi-wire Speaker Cable can be used for an easy and elegant connection to both the loudspeaker amplifier and the SoundPath Speaker-Level to Line-Level adapter.
Features and Specifications:

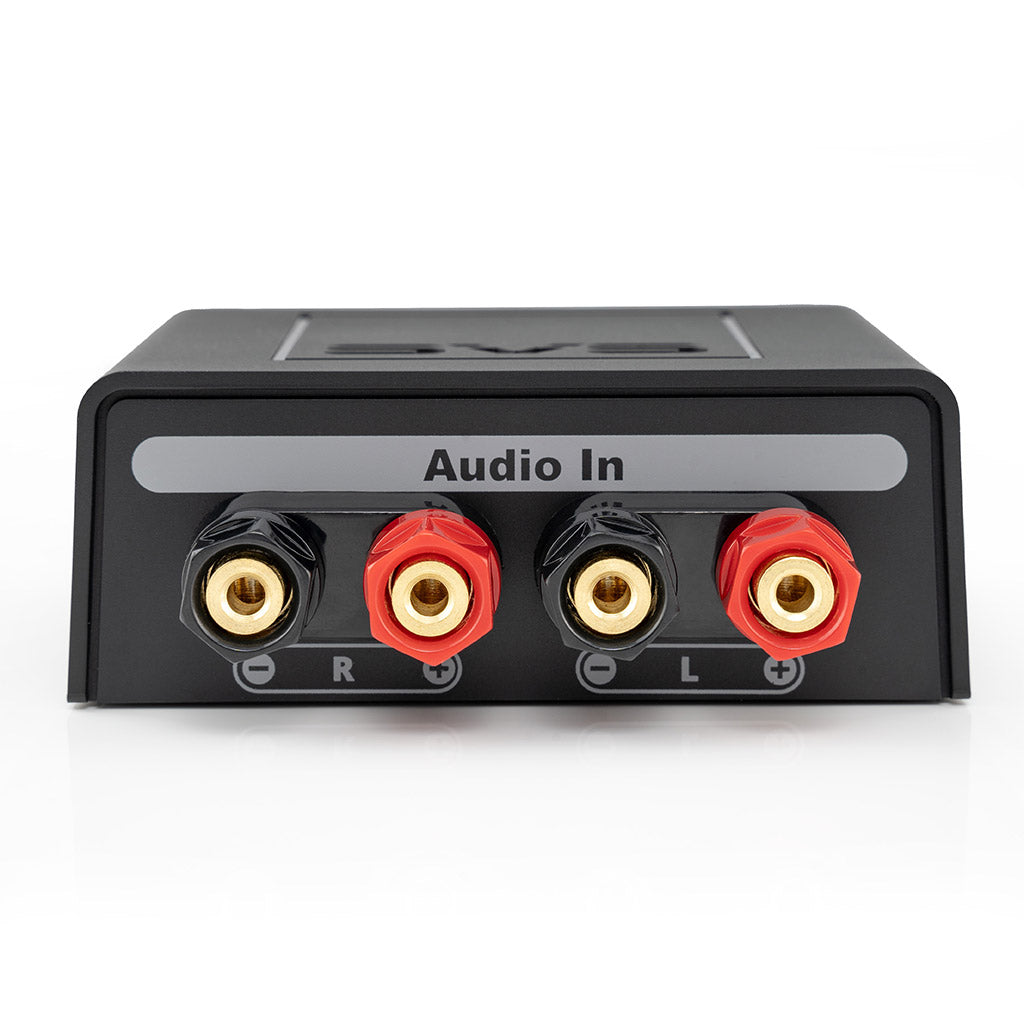

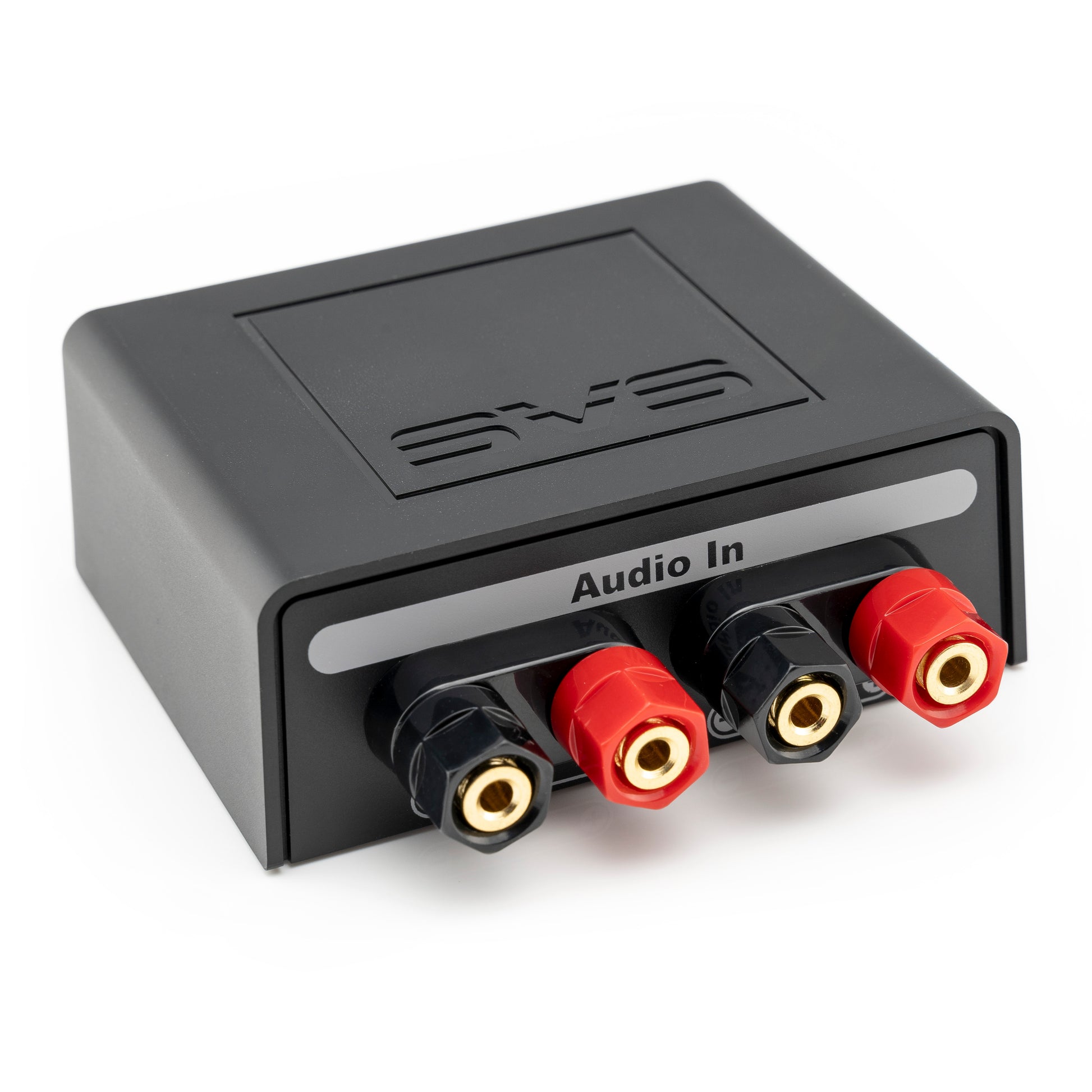

- Speaker-Level Inputs: Stereo Gold-Plated 5-Way Speaker-Level Binding Posts

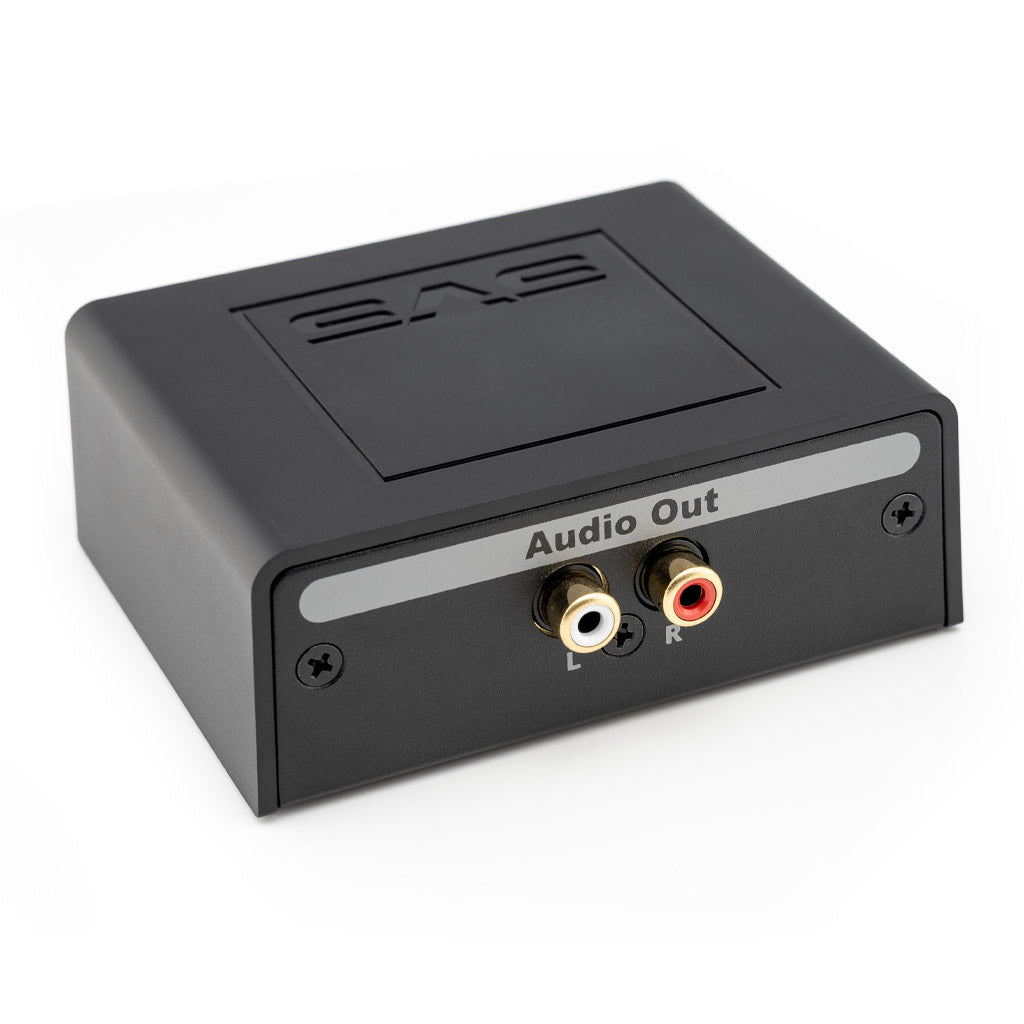

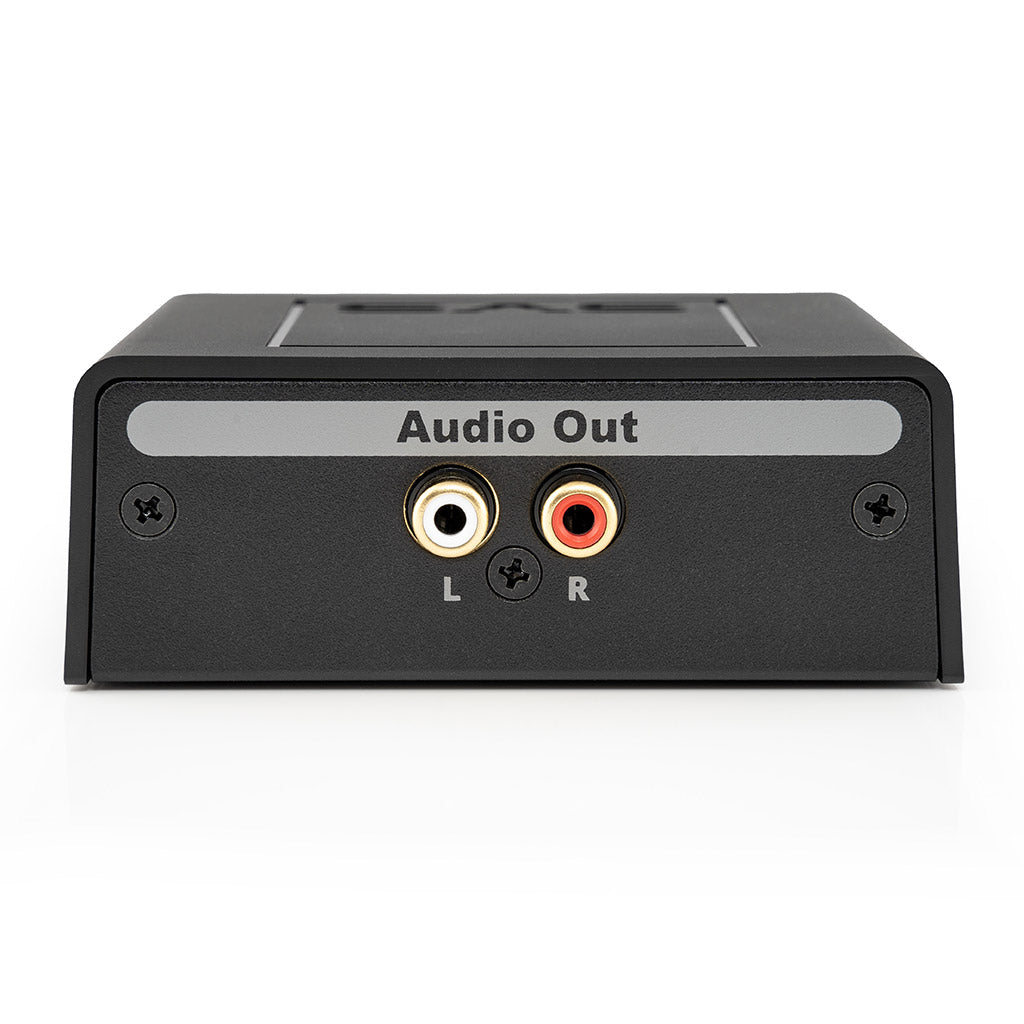

- Line-Level Outputs: Stereo Gold-Plated RCA Jacks
- Speaker-Level Input Impedance: 4.85 kΩ
- Line-Level Output Impedance: 150 Ω
- Voltage Attenuation: -30 dBV
- Power Handling: 500W RMS / 1,000W Peak
- Frequency Response: 10 Hz – 80 kHz (+/- 0.01 dB)
- THD+N @ 10V: <0.03% (10 Hz – 80 kHz)
- Dimensions: 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D
- Weight: 0.6 lb. (0.28 kg.)
Note: If you have a differential amplifier, please contact SVS Customer Service for guidance on special connection methods to safely use the SoundPath Speaker Level to Subwoofer Adapter.
